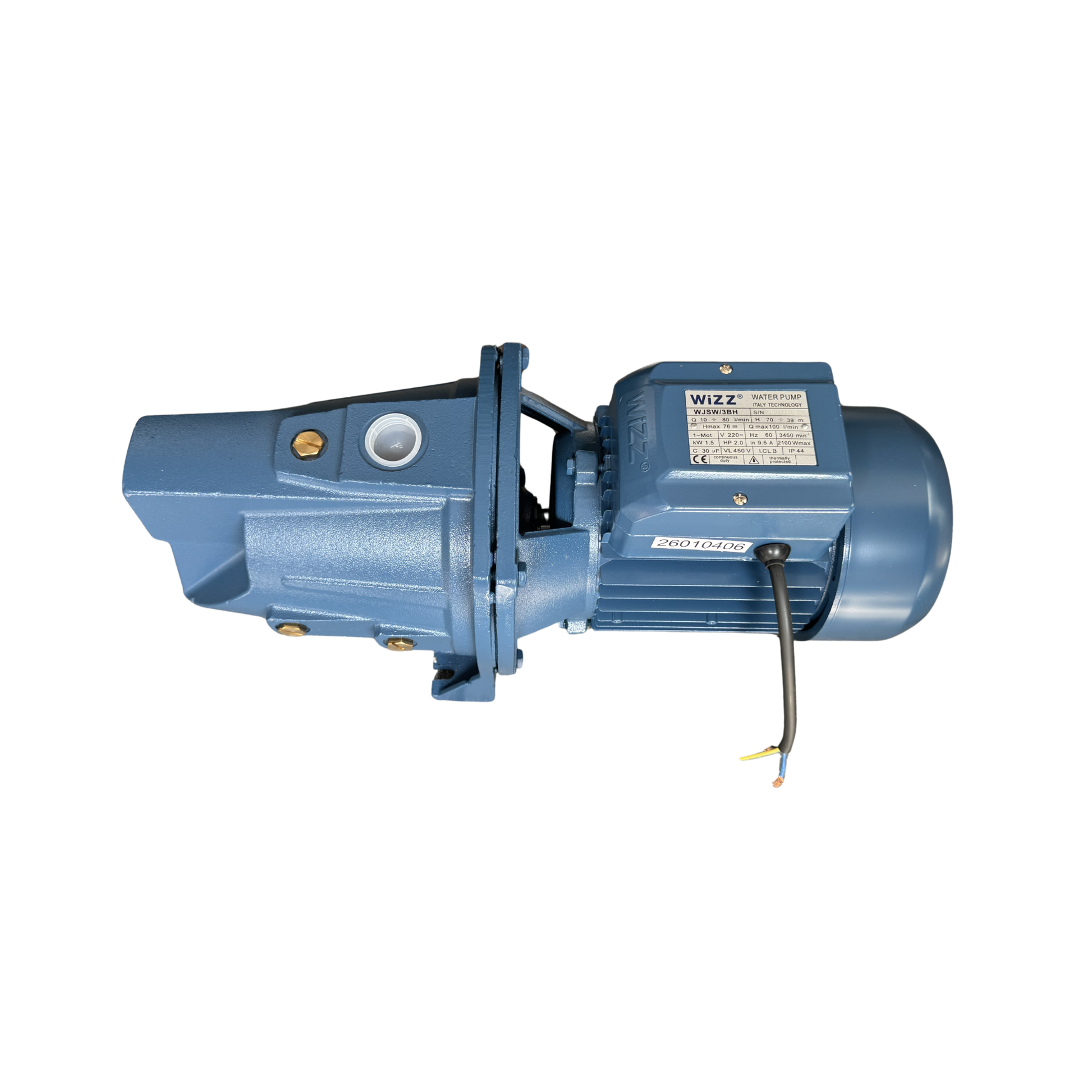

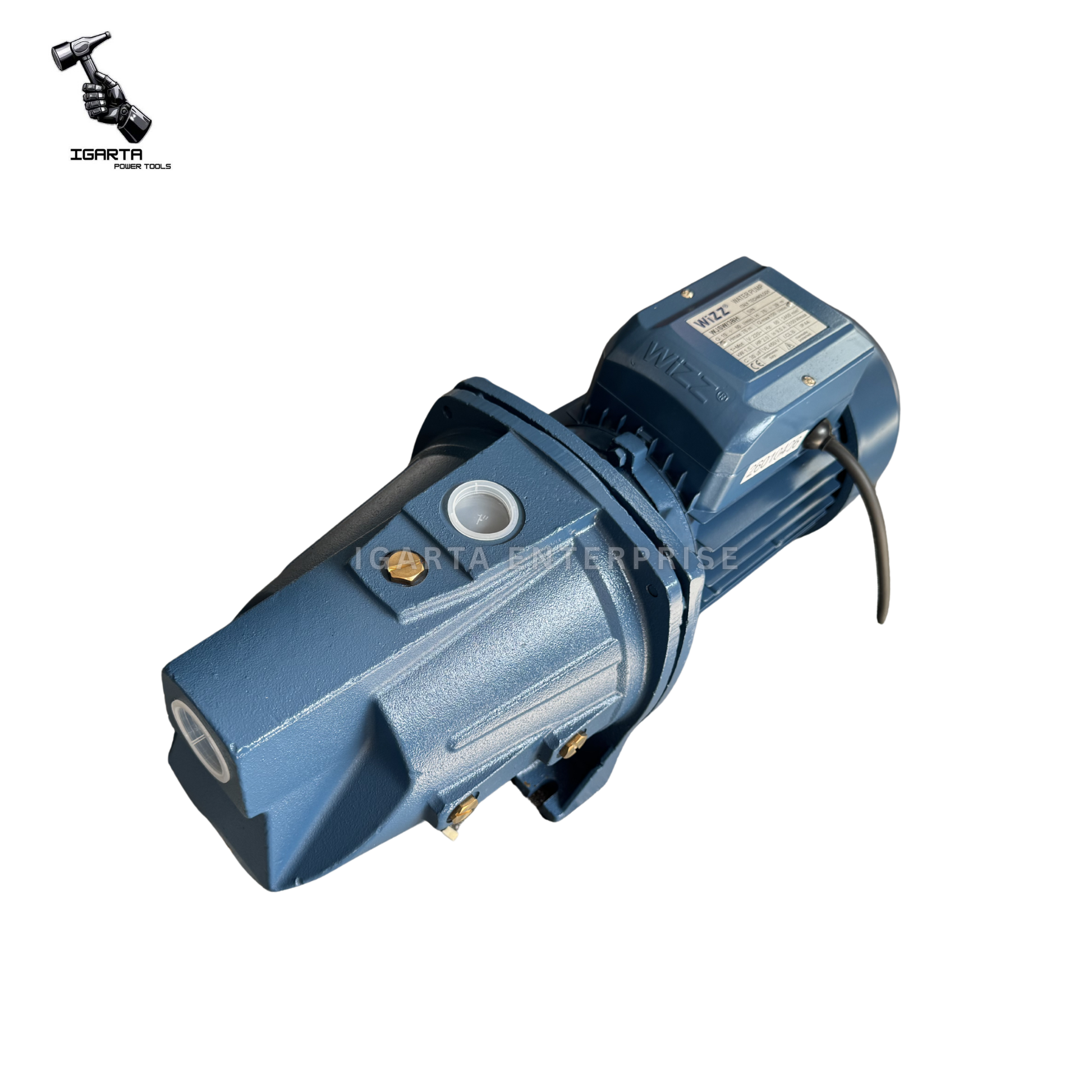

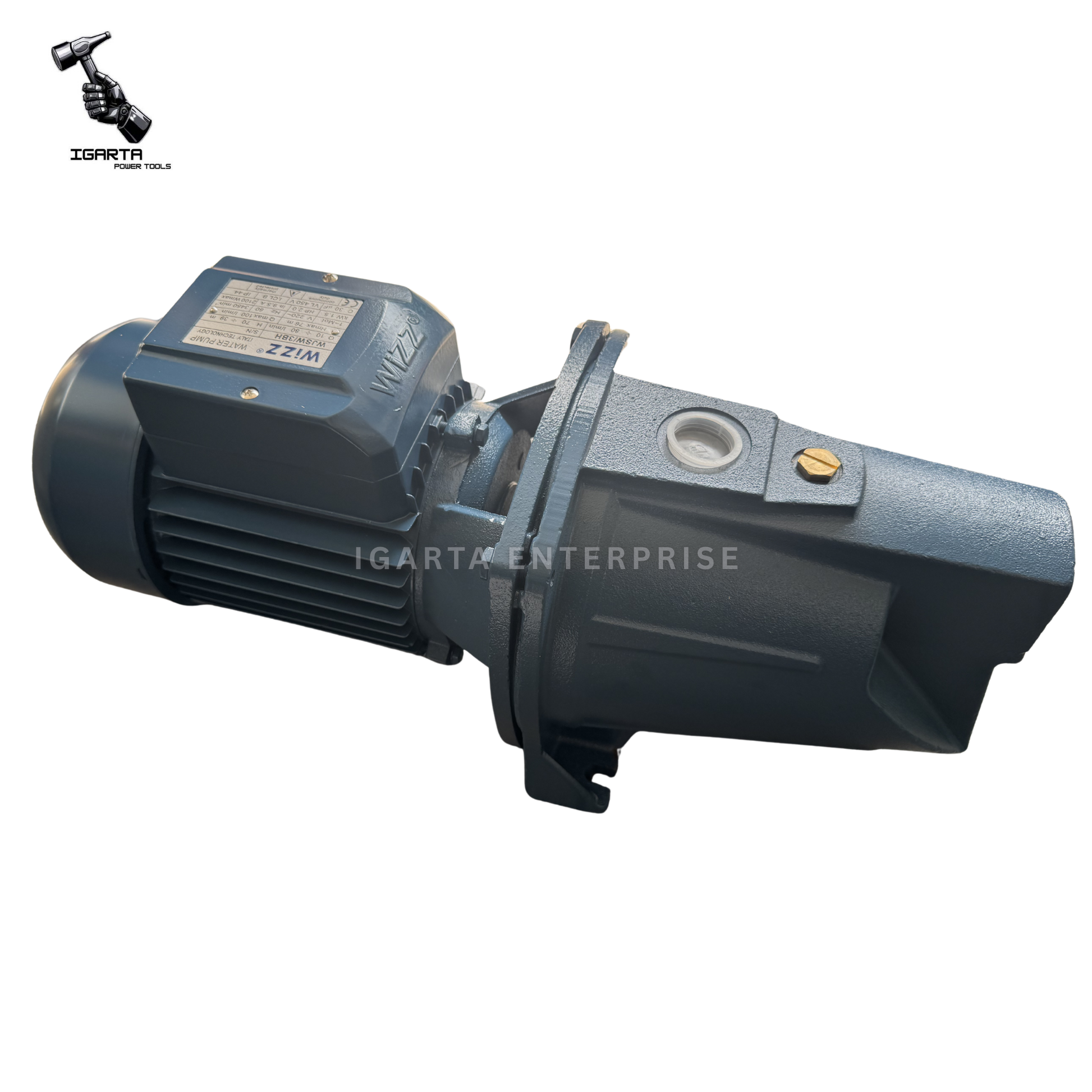

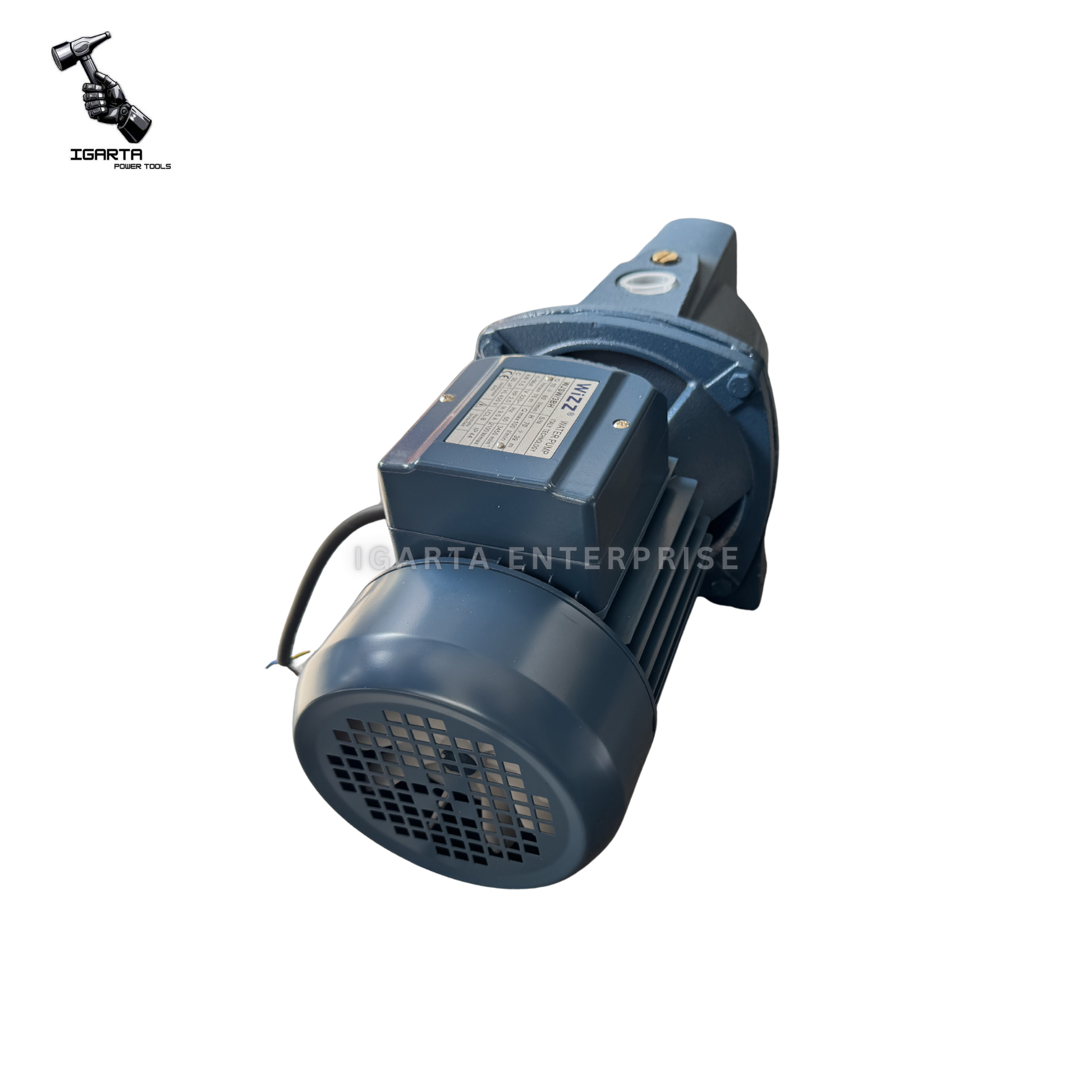

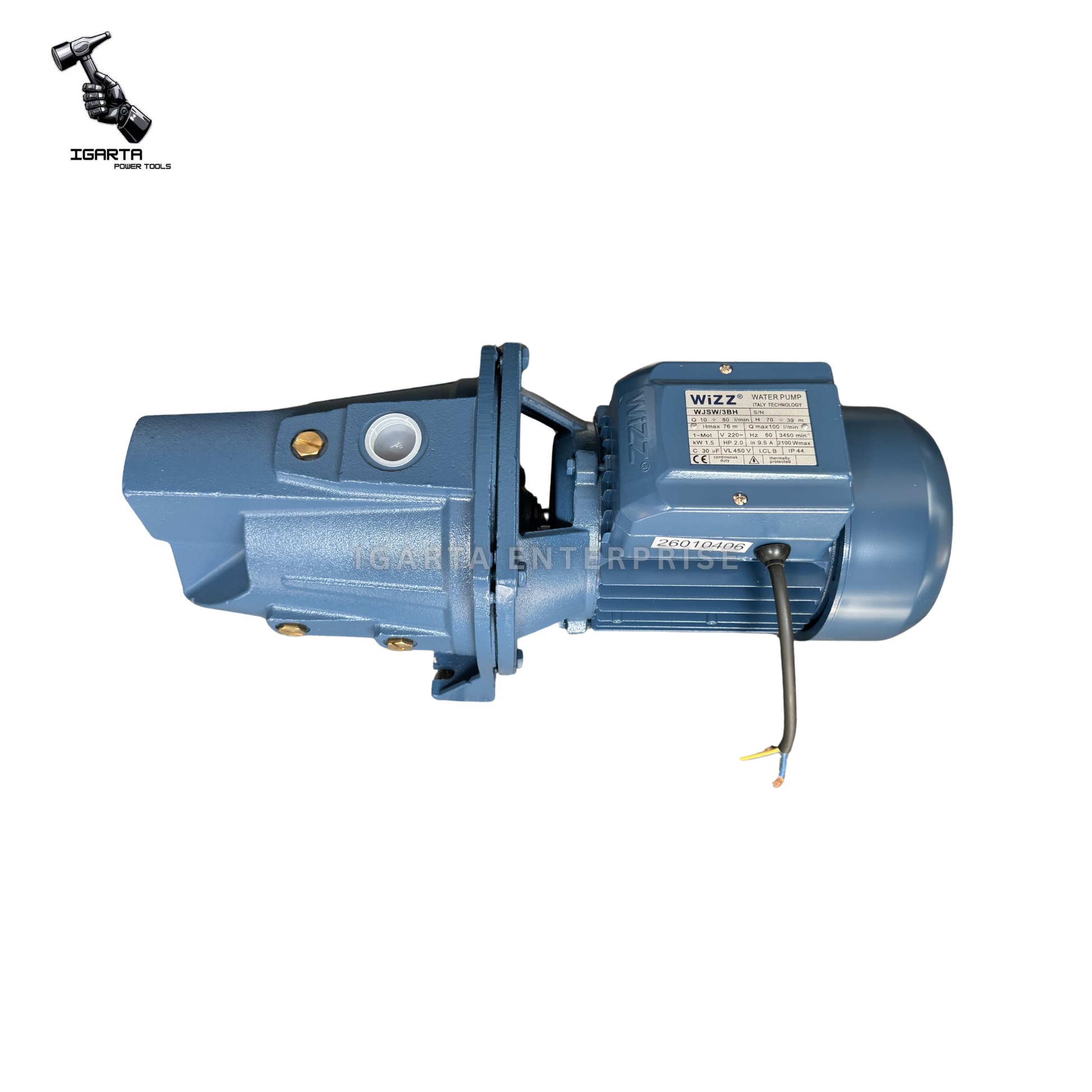

Wizz 2.0HP Jetmatic Pump WJSW 3BH

Wizz 2HP Jet Booster Shallow Well Self‑Priming Pump

Powerful Water Pressure, Reliable Italian Technology

Key Features

• 2HP Motor (1.5kW) – Strong and efficient for household and farm use

• High Performance – Delivers up to 100 L/min flow with a 76m maximum head

• Self‑Priming Design – Easy to start, even after air enters the suction line

• Durable Build – Cast iron body, brass impeller, stainless steel mechanical seal

• Thermal Protection – Prevents overheating during continuous duty

• Italian Engineering – Trusted brand with complete spare parts available locally

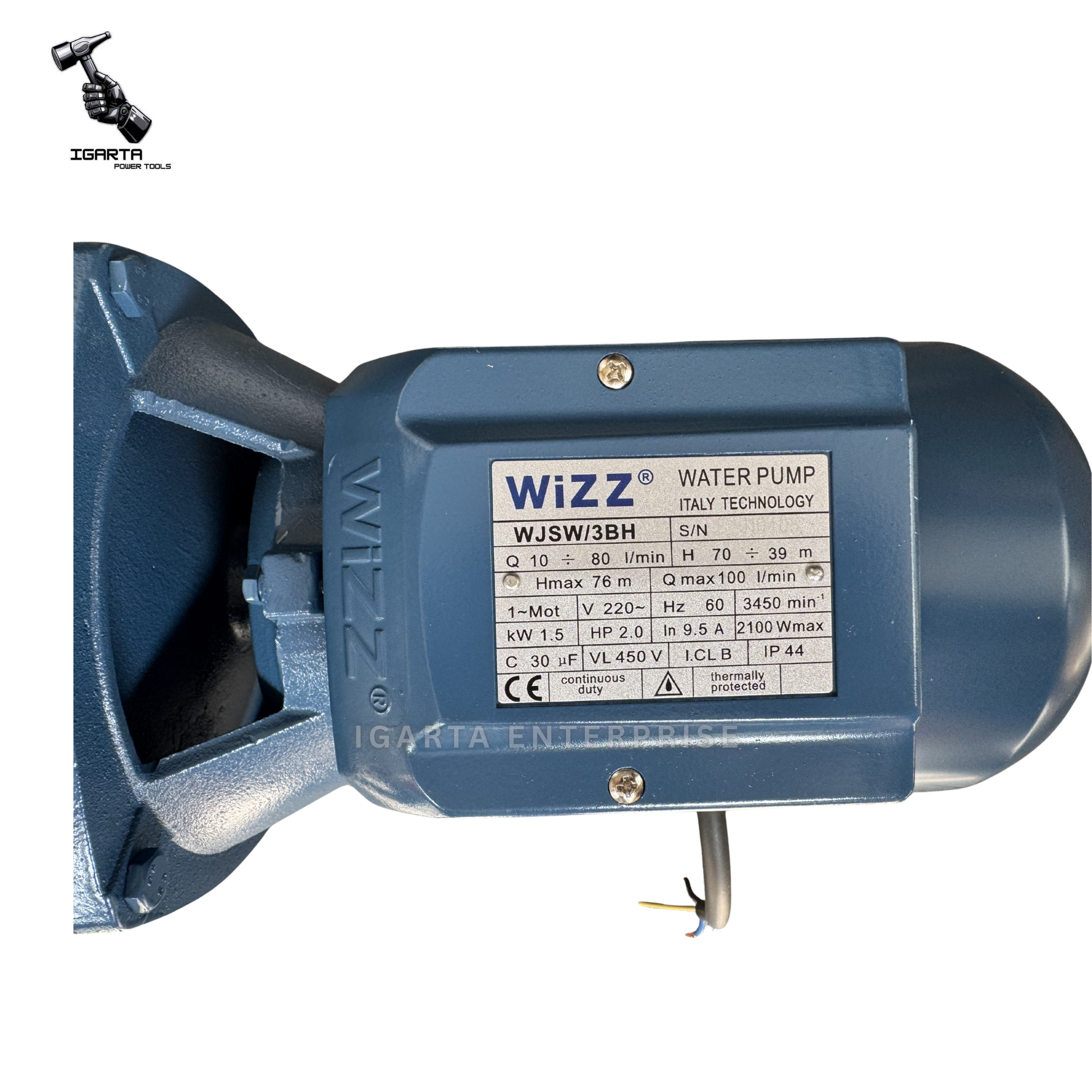

 Technical Specifications

• Model: WZ‑WJSW/3BH

• Power: 2HP / 1.5kW

• Voltage: 220V, Single Phase, 60Hz

• Flow Rate: Up to 100 L/min

• Maximum Head: 76m

• Suction Lift: 9m

• Inlet/Outlet Size: 1.25" x 1"

• Protection: IP44, thermally protected

• Duty: Continuous

 Applications

• Household water supply – Strong pressure for showers, faucets, and appliances

• Agricultural irrigation – Reliable for farms and gardens

• Commercial use – Suitable for small businesses needing dependable water transfer

Installation Notes

• Place pump close to water source for best performance

• Always prime before operation

• Use a foot valve or check valve on suction pipe

• Professional installation recommended for safety and longevity
