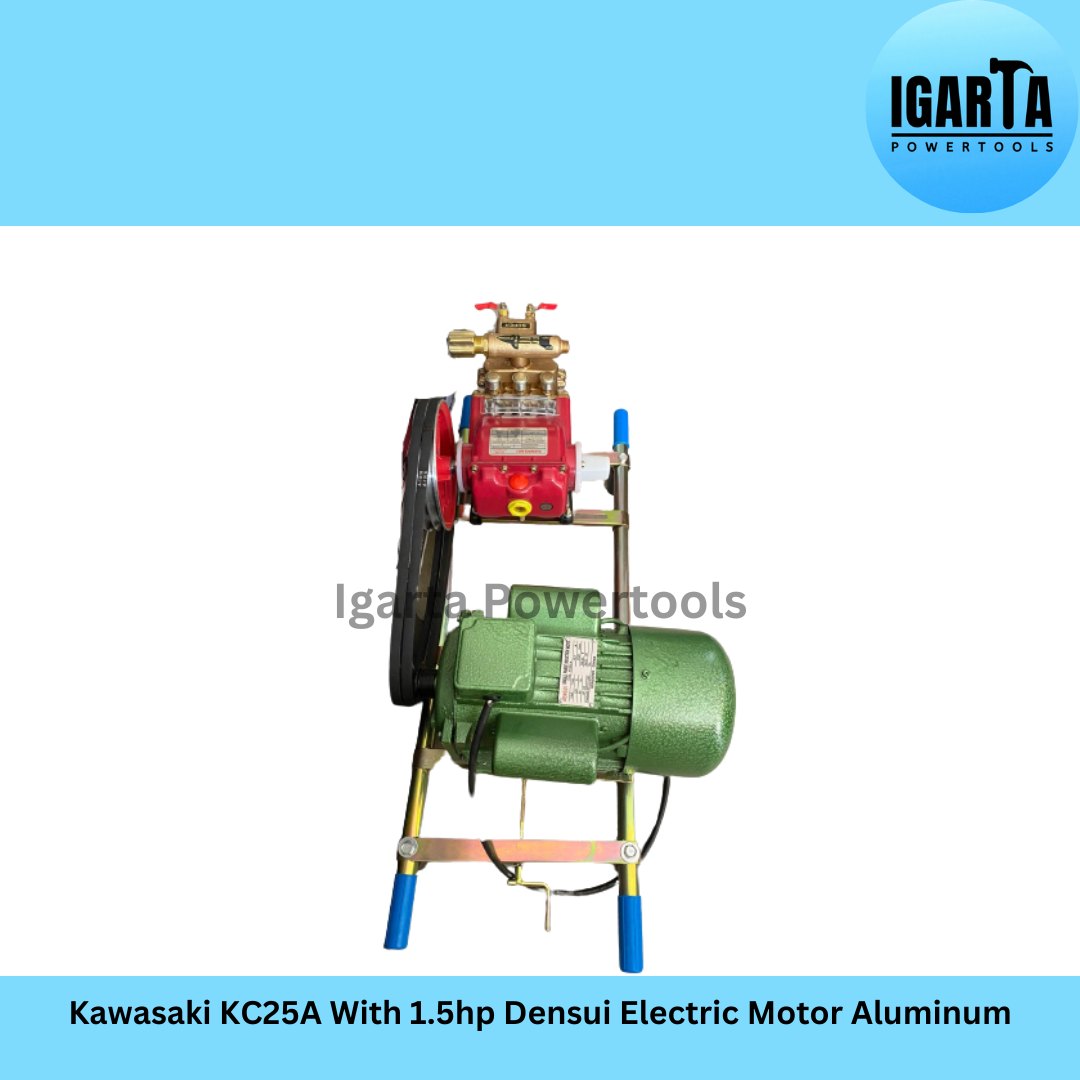

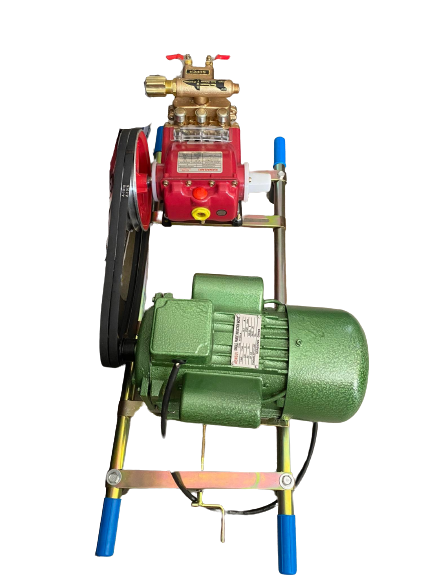

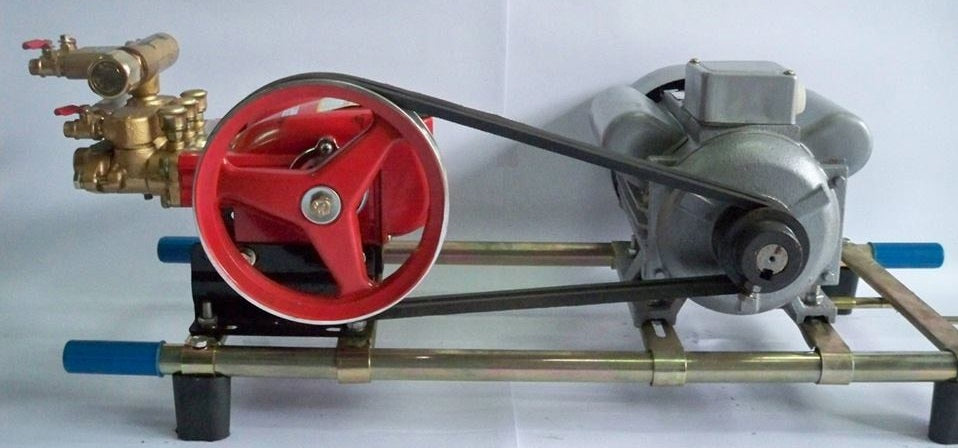

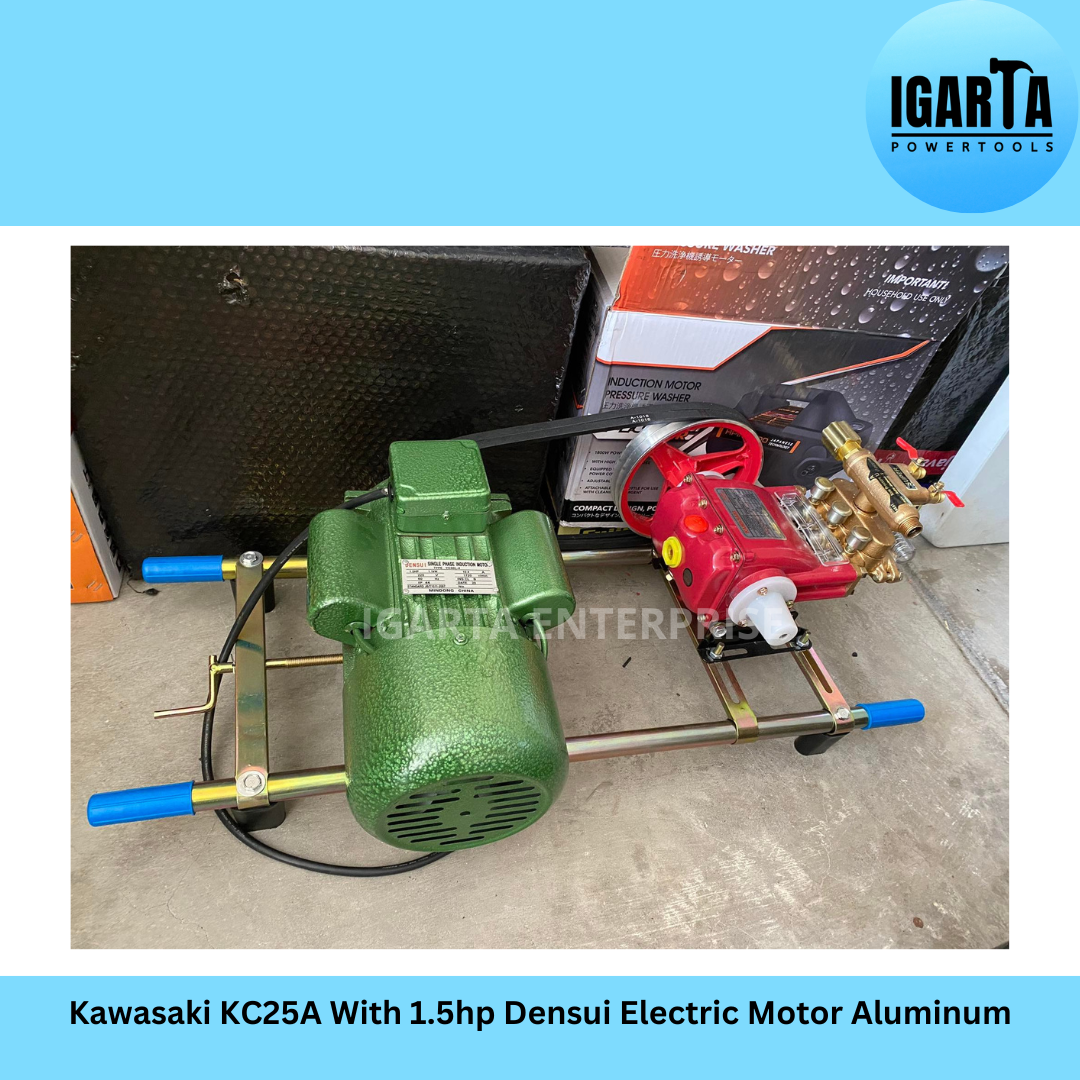

Kawasaki Power Sprayer 1.5HP Densui Electric Motor

•

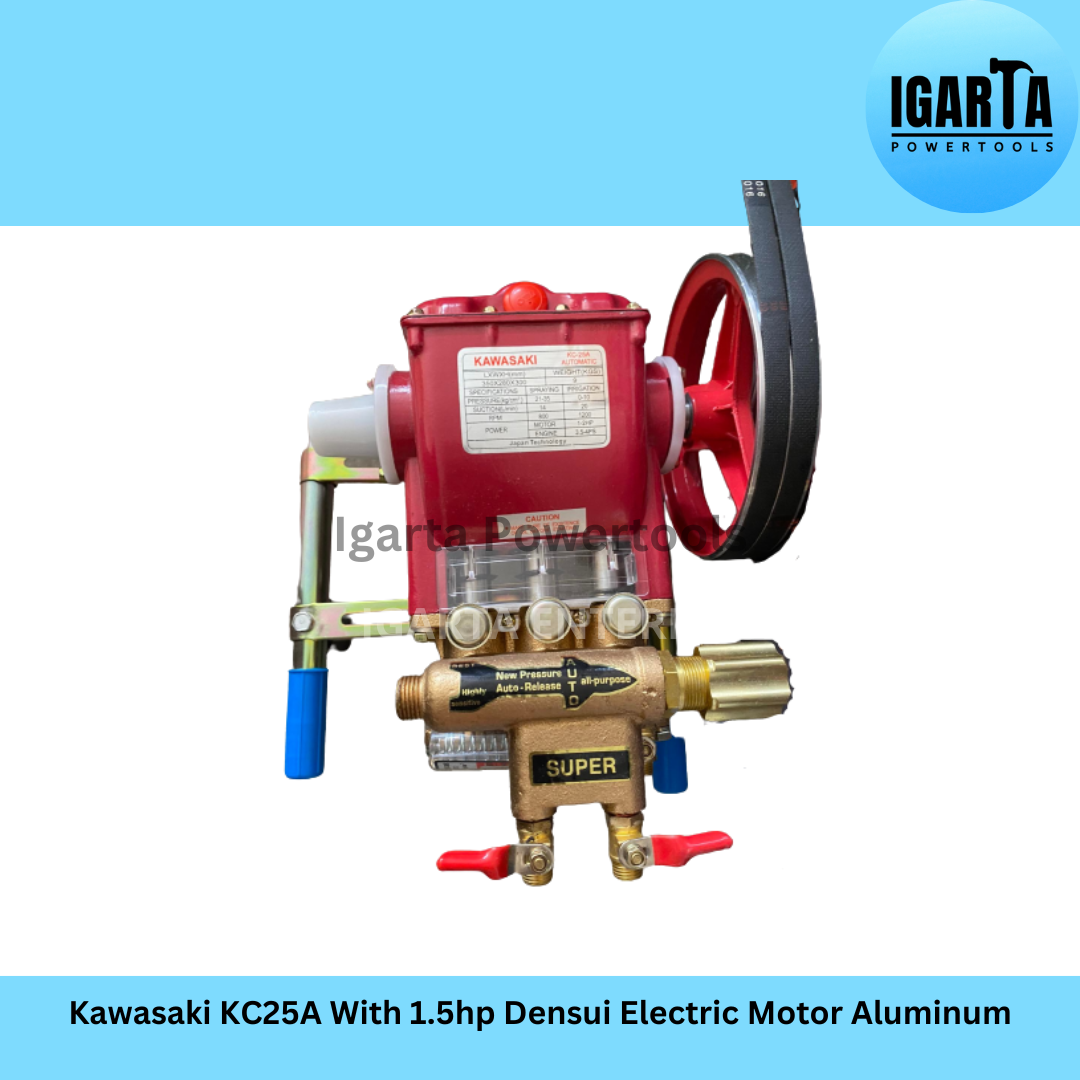

Kawasaki Power Sprayer Pressure Washer KC25A

Head Specs





Model: KC-25A

Pressure: 800rpm Spraying,

1200rpm Irrigation

Motor Power: 1-2HP

Engine Power: 3.5-4PS

Weight: 10Kg

Included in the package:
- Kawasaki Sprayer Pump
- 10 meters Sprayer Hose with Fittings
- 2pcs Belt
- Overflow / Return Hose
- Suction Hose with Strainer
- Gaskets, bolts and nuts
- Pulley for Pump



Engine Specs

• Electric motor single phase capacitor start/capacitor run type for high starting torque; this is appropriate for all machinery, including compressors, woodworking equipment like saws, drills, lathes, and mills as well as ramps for automobiles.

• 0.75 Kw, or 1 HP (4 Pole) (1720 rpm)

• Current at full load is 6.91 Amps

• 75 Frame (75mm from base of foot to center line of shaft)

• Top-Notch Cast Aluminum Motor

• The motor can be configured to rotate either way or, for frequent changes, it can be connected to a reversing switch.

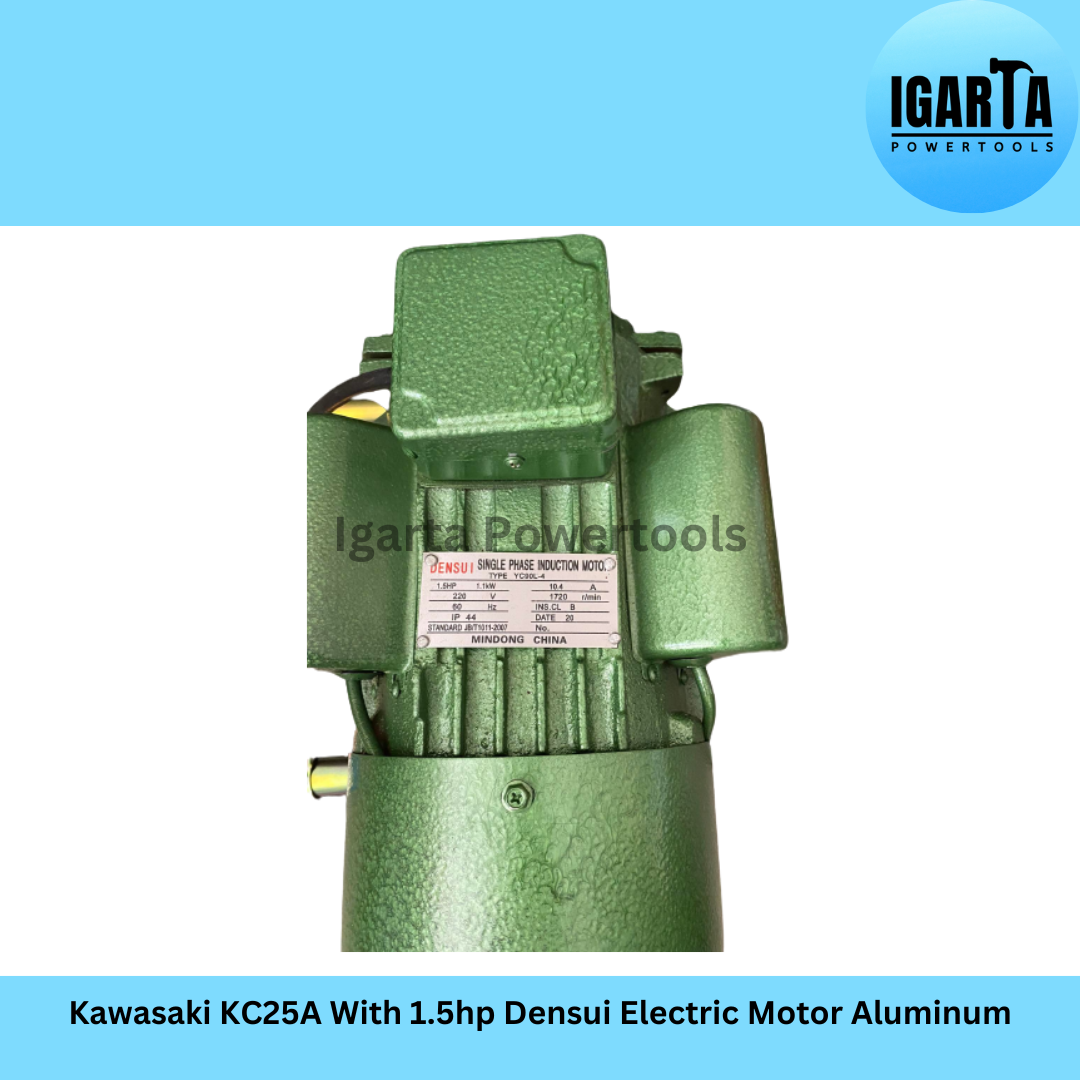

DENSUI Engine
newly made windings
1 horsepower is typical
a 24 mm shaft
Single phase, 220 volt, capacitor induction motor, 1740–1800 rpm
all-purpose usage
